Page Five!!

The Summer Renovation!!

I always seem to do my major renovations during the summer, you know,
 when it is way too hot and really humid...

Anyway, enough complaining....

We have a space on the first floor of our building that was designed as a small retail space,
 for a small pub, or some other retail shop.
The space is about 12' square, it is actually 3.75 meters by 3.85 meters,
so whatever that is in feet.

There is a space in the very back of the room, not included in the 12' x 12' space,
 that has a toilet and sink, this makes this space perfect for the "English School/Wine Tasting"
 room that we are planning on using it for.

The North wall is complete, and the ceiling is complete as well.

I've got to build the South wall, with the door and window in it,
 and cover up the East and West walls as well.

Here are some of the pictures I've taken.



Go here to see an animated gif of the work so far


This is looking North, you can see all the lumber and sheet goods I just bought.


Another view


From in the street in front of the space, the shutter is all the way up at the moment.


Looking at the East wall


Getting started on the east wall


More sticks up and the wire run of plugs


Now I'm putting the vapor barrier up, it is a kind of tar paper


All the tar paper is up


I'm putting up thin, 9mm, cheap plywood on the wall, and then covering that with plasterboard. This will make it very easy to attach anything to the walls anywhere I want in the future, without having to worry about finding the studs.


OK all the plywood is up...


Now comes the plasterboard


Plasterboard done and ready for mud and wall paper


it is a bit hidden behind the shrubs, but you can see the basic framework there.




The opening on the right will be for the "Front Door" with a window beside that




Here is an "inside, looking out" picture. I've still got to frame up for the door.


Tar Paper is done, the window and the door are installed too.


Another view

Then this morning I slept in until 9 AM!!!
I got down there as soon as I could, but I have to help set up for the town festival that we are having this weekend, so I could only work for a few hours.

I got started on the siding, this stuff is neat, it is metal with a foam underlay, it is about 3/4" thick, so that should help in keeping this place cool in the summer and warm in the winter.


Yet another view

Cheers!

a bit of a closer view

The siding is cool, but the thing is cutting it you just use a circular saw, and even with safety glasses and full shield, (plus hearing protection of course) is it shitty stuff to cut, the hot chips of metal get into everywhere!!

Inside view

OK, I got the whole front of the renovation done, well except for installing the lock-set in the door. All that siding has been caulked and is done, looks OK to my tastes.

I then got down to the floor on the East side of the room. I put down sleepers (is that what they are called?)
and then I put this sort of soft, but slightly rigid insulation between the sleepers. The sleepers are screwed into the floor every couple of feet.



I then put tar paper down as my vapor barrier


It sure is easier to put that stuff on a floor than a wall!!

Next went some 12 mm plywood

This was fairly straight forward as well.

One of the banes of working in a small space is the lack of space.....

I planned fairly well, and only have to move my stack of stuff once.

I now have to finish the floor and do the West wall, I hope I can get at it tomorow...

OK I got in there nice and early and did some more.....


The floor should be nice and warm!!


I put Tar Paper on before I put the sub-flooring down, there, the floor is done for now!!



On to the West Wall!!


I bought way too much insulation for the floor, so I used it on the wall.


Yes more Tar Paper!!


I got the first two sheets of Plaster Board on before I remembered to take a pic of the plywood...

Man, just looking at these pics I realized I covered up one outlet.....whoops!!

Well there is the West Wall done, except for digging out that outlet that is....

PS, take a look at the weather today....

RAIN!!

Now the South Wall


Got all the insulation in, I hate that stuff!!


Now the tar paper, maybe over kill with the plastic back insulation, but I have it so I think I'd might as well use it.


Getting some plywood up


OK there, all the plywood done!

Now I just have to wait on the plaster board, I ended up buying one or two sheets too few, so I got to get some more!

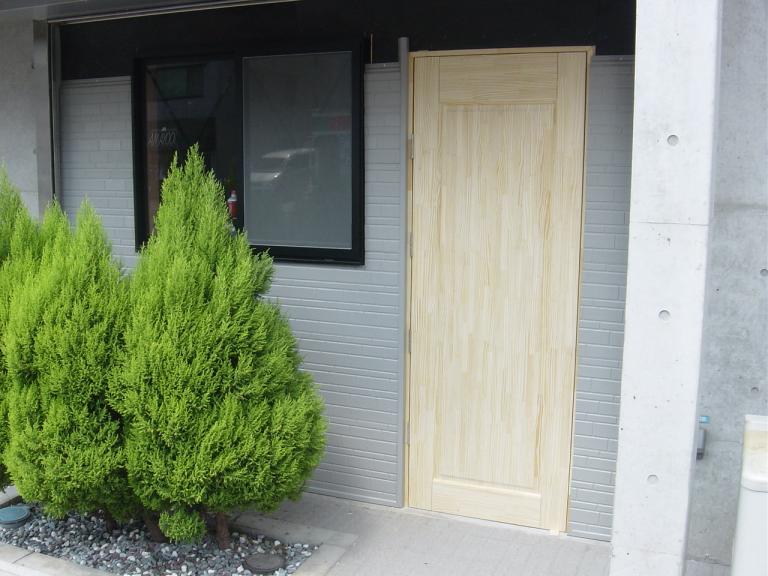

Here is a shot outside, the sun was very bright, so the pic is not so good.
I even trimmed the bushes!!



More to come!
